The narrow chain is not always the part that must fit
To check pendant and chain compatibility, compare the pendant's inside bail opening with every component that must pass through it—not just the chain's width. An end ring, clasp, terminal cap, or decorative station may be wider than the links. Then make a separate assessment of whether the complete pairing is intended to support and orient the pendant.
The bail is the pendant's hanging attachment. It may be an obvious loop above the ornament, a concealed passage behind it, or an opening mechanism designed for a particular necklace connection. Its outside dimensions do not describe the usable space inside.
Start by deciding whether you are evaluating two separate pieces or a necklace already supplied as a complete assembly. A compatible original pairing does not automatically establish compatibility with a different chain of the same advertised width.
Trace the route from one chain end to the pendant
Draw the chain as a line with a labeled end at each side. Mark its clasp, receiving ring, terminal caps, and any stations or beads. Draw the pendant's intended opening beside it. Now trace the path an end would take through that opening without removing or altering any components.
Often one end is smaller than the other. The clasp might not need to pass through if the opposite end can follow the whole route normally. But the smallest visible endpoint is not enough: a wider terminal immediately behind it can still stop the passage. Inspect the entire length that would need to travel through the bail.
For a chain with fixed decorative stations, the relevant route may stop at the first station even if the plain links fit. Do not assume that the pendant can slide anywhere along a necklace just because the clasp opens.
This drawing is a planning tool, not a threading trick. If the route requires forcing a component, removing a ring, or altering the pendant, record that the proposed unmodified combination has not been established.
Compare the opening in two directions
A bail opening may be oval, rectangular, tapered, or irregular. A single width can miss the narrower dimension. Ask for inside width and inside height at the limiting point, then compare them with the relevant end fitting's width and thickness in its intended passing orientation.
| Component | Recorded dimensions | Initial reading |
|---|---|---|
| Bail interior | 4 mm wide, 6 mm high | Two-dimensional opening |
| Plain chain | 2 mm wide | Body width alone looks small enough |
| Terminal cap | 5 mm wide, 3 mm thick | Needs orientation and shape assessment |
| Opposite end fitting | 7 mm wide | Not established as a pass-through route |
The worksheet deliberately stops short of declaring a fit. A terminal's ability to turn, its length, the bail's depth, and rounded interior corners affect passage. Matching two flat rectangles on paper is a screening exercise, not a guarantee that three-dimensional components will move through each other.
Leave room for measurement uncertainty. A reported four-millimeter opening and a reported four-millimeter fitting do not prove comfortable clearance. Equal rounded numbers may hide a smaller opening, a larger fitting, or a measurement taken at different points.
Distinguish a fixed loop from an intended opening bail
A fixed loop requires the appropriate chain end to pass through. A bail designed to open may attach around a compatible chain or strand instead. These are different routes, and the product instructions must identify which one is intended.
Fire Mountain Gems' bail reference shows that hinged and other opening designs exist alongside many permanent jewelry-making attachments. The presence of a seam, split, or small joint does not mean a customer should pry that component open.
For an intended enhancer or opening bail, check its receiving space and documented closing action. It must close normally around the selected chain or strand; merely fitting inside while open is not the same as a completed connection. Do not transfer instructions from a visually similar bail to an unidentified one.
Keep passage, support, and hanging direction separate
A chain can pass through an opening without being a suitable carrier for the pendant. Passage addresses geometry. Support concerns the particular chain, attachment construction, pendant, and maker's intended use. Hanging direction concerns where the loop sits and how the pendant rests once suspended.
Use three verdict boxes: passage established, support established, and orientation established. A “yes” in the first box does not fill the other two. A photograph may show that a pendant hangs facing forward on one supplied chain, but it cannot certify the same result on every thicker, flatter, or differently shaped chain.
Chain-style names such as rope or box do not provide a universal load rating. Neither gold-tone color nor a substantial-looking photograph establishes strength. For a valuable or unfamiliar combination, a jeweler's assessment is more useful than a home stress test.
Apply the check to a pendant with a documented loop

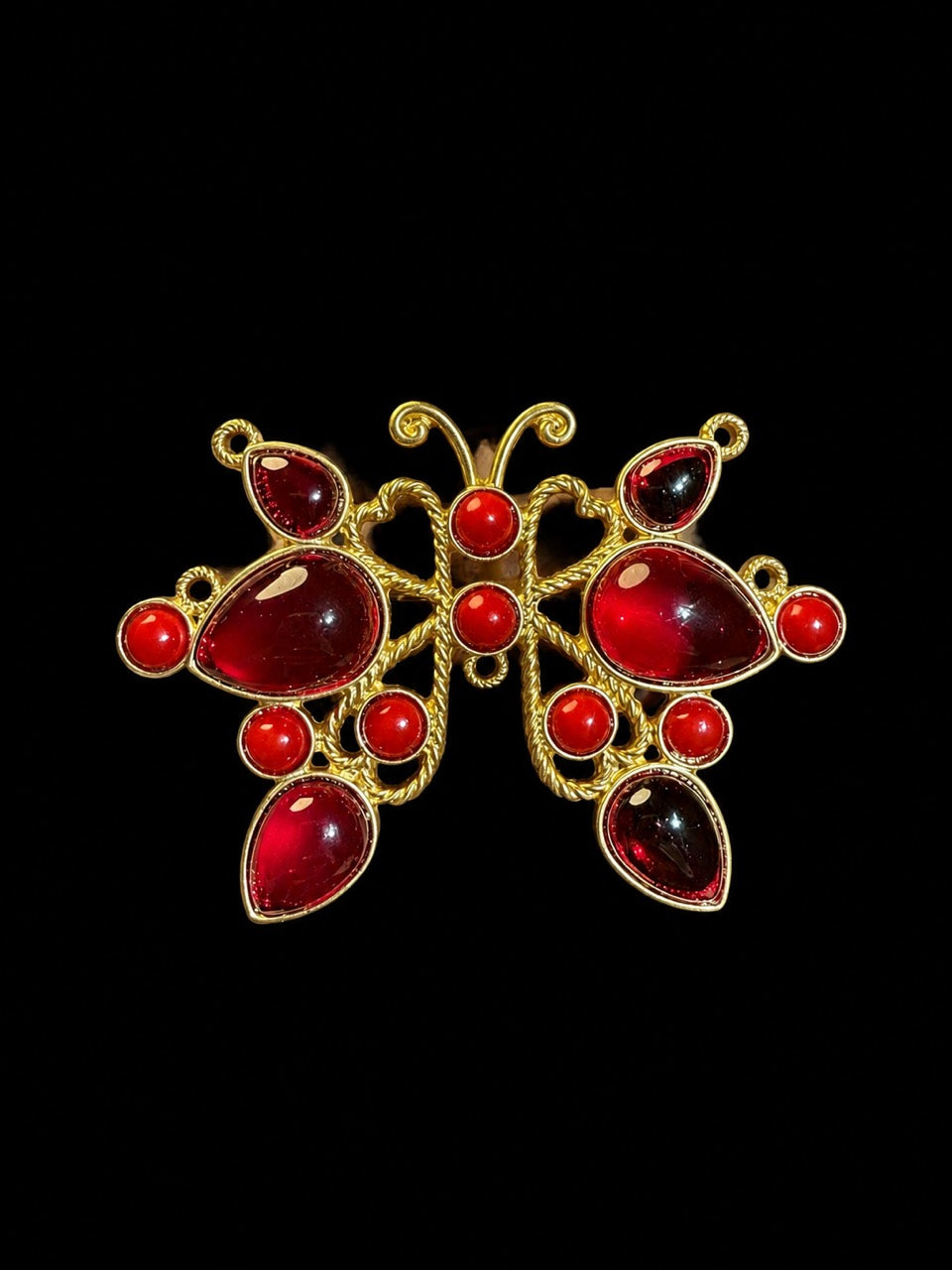

The RJC listing establishes an intended pendant attachment, which makes it a relevant starting point for this worksheet. It does not state the loop's internal dimensions or establish that your existing chain will pass through. Nor does describing a brooch pendant establish that a chain is included.
Compare possible carriers in the necklace collection, keeping the complete end fittings in view. If a specific pairing interests you, send the pendant and chain details together so the answer concerns the connection, not either piece in isolation. The Journal can then help with presentation after the physical pairing is resolved.
